Dograh Dograh is an open-source, self-hosted platform for building AI voice agents. Connecting it to Vobiz gives your agents real phone numbers and global calling through premium SIP trunking.

​
What you’ll build

A self-hosted Dograh instance that places and receives AI voice-agent calls over Vobiz - Dograh dials via the Vobiz REST API, Vobiz fetches a <Stream> instruction, and audio streams bidirectionally over a WebSocket to your agent (STT → LLM → TTS).

​
Prerequisites

  • A Vobiz account with an Auth ID (e.g. MA_XXXXXXXX) and Auth Token - from the Vobiz Console.
  • At least one Vobiz phone number (your caller ID), in E.164 without the + (e.g. 91XXXXXXXXXX).
  • Docker + Docker Compose installed.
  • A way for Vobiz’s cloud to reach your server. For local dev, Dograh auto-creates a Cloudflare quick tunnel (see Step 5).

​
Step 1: Run Dograh

git clone https://github.com/dograh-hq/dograh.git
cd dograh

# Required secret for OSS auth (any strong random string)
echo "OSS_JWT_SECRET=$(openssl rand -hex 32)" > .env

REGISTRY=ghcr.io/dograh-hq ENABLE_TELEMETRY=false docker compose up -d --pull always
First boot pulls images (2–3 min). When healthy, open http://localhost:3010.
Health check: curl http://localhost:8000/api/v1/health should return {"status":"ok", ...}.

​
Step 2: Create your account

Open http://localhost:3010, sign up (local auth - no email needed), and you’re in the dashboard.

​
Step 3: Get your Vobiz credentials

From the Vobiz Console, copy:
  • Auth ID (MA_…)
  • Auth Token
  • (Optional) Application ID - leave it blank and Dograh auto-creates one and stores it.
  • Your Vobiz number(s) you’ll call from.

​
Step 4: Add Vobiz in Dograh

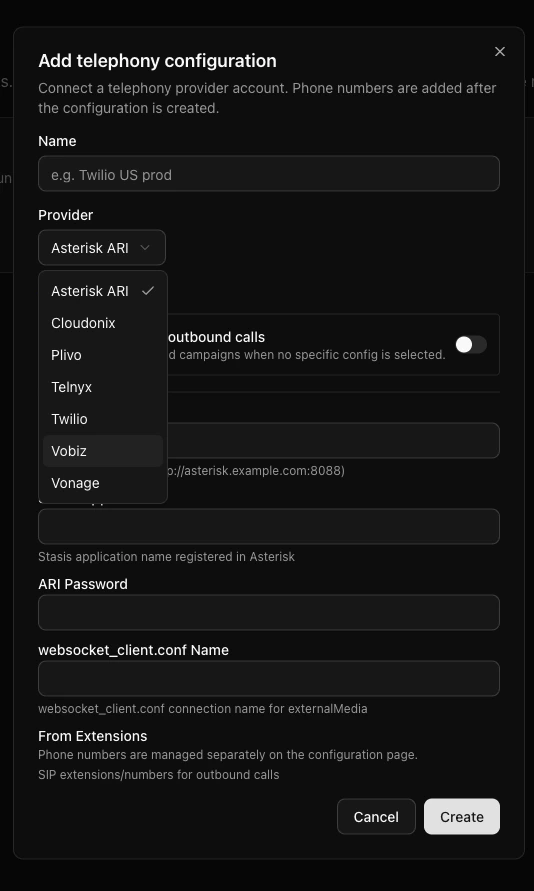

In the dashboard, go to Telephony → Configure Telephony. Dograh Configure Telephony side panel Select Vobiz as the provider. Select Vobiz provider in Dograh Enter your credentials:
FieldValue
Providervobiz
Auth IDMA_XXXXXXXX
Auth Tokenyour Vobiz auth token
Application ID(optional - auto-created if blank)
From numbersyour Vobiz number(s), E.164 without + (e.g. 91XXXXXXXXXX)

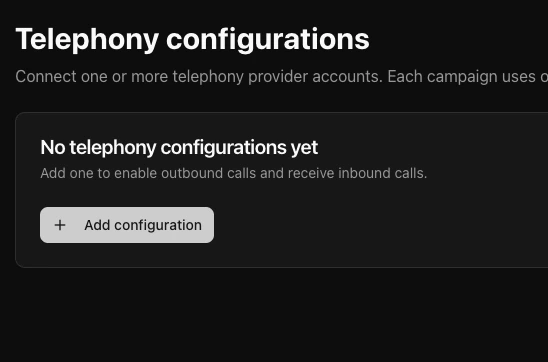

Add Vobiz telephony configuration in Dograh Save, and set it as the default outbound config if prompted.
Dograh is now authorized to place and receive calls through your Vobiz account.

​
Step 5: Make Dograh reachable from Vobiz

Vobiz’s cloud calls back into Dograh for call control and audio:
EndpointPurpose
POST /api/v1/telephony/vobiz-xmlReturns the <Stream> instruction.
POST /api/v1/telephony/vobiz/ring-callback/{run_id}Ring status.
POST /api/v1/telephony/vobiz/hangup-callback/{run_id}Call ended.
WS /api/v1/telephony/ws/{workflow_id}/{user_id}/{run_id}Bidirectional audio stream.
For these to work, Dograh must be publicly reachable:
  • Local dev - Dograh auto-starts a Cloudflare quick tunnel and uses it automatically (no setup). Check it in the health output’s backend_api_endpoint.
  • Production - deploy on a server with a real domain (HTTPS) and set BACKEND_API_ENDPOINT=https://your-domain so the callbacks and wss:// stream use a stable, low-latency endpoint. See Dograh’s Docker deployment guide for the remote profile (nginx + HTTPS).

​
Step 6: Build an agent

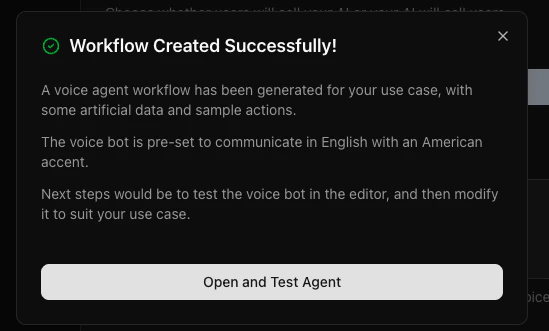

Go to Create agent, pick Inbound or Outbound, name it, and describe the use case in a sentence (e.g. “Qualify inbound insurance leads”). Dograh generates a workflow you can edit. Dograh workflow created successfully

​
Step 7: Place an outbound call

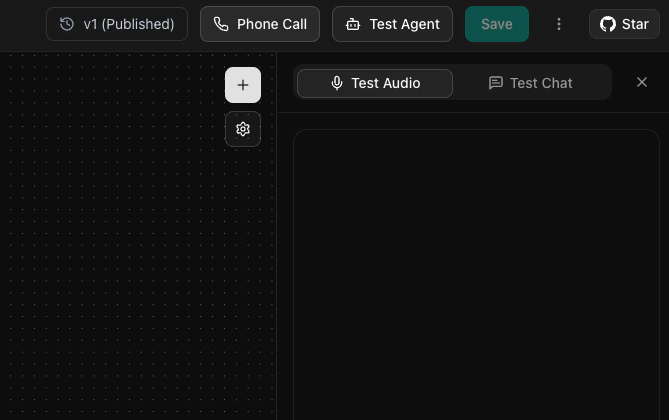

Open your agent and click Call (phone icon): Place an outbound call in Dograh
  • Telephony configuration: vobiz (vobiz) - default
  • Caller ID (from): your Vobiz number
  • To: the destination number (E.164)
Click Call, pick up, and talk to your agent. Dograh dials via the Vobiz REST API, Vobiz fetches the <Stream> XML, and audio streams over the WebSocket to your agent.

​
Inbound calls (optional)

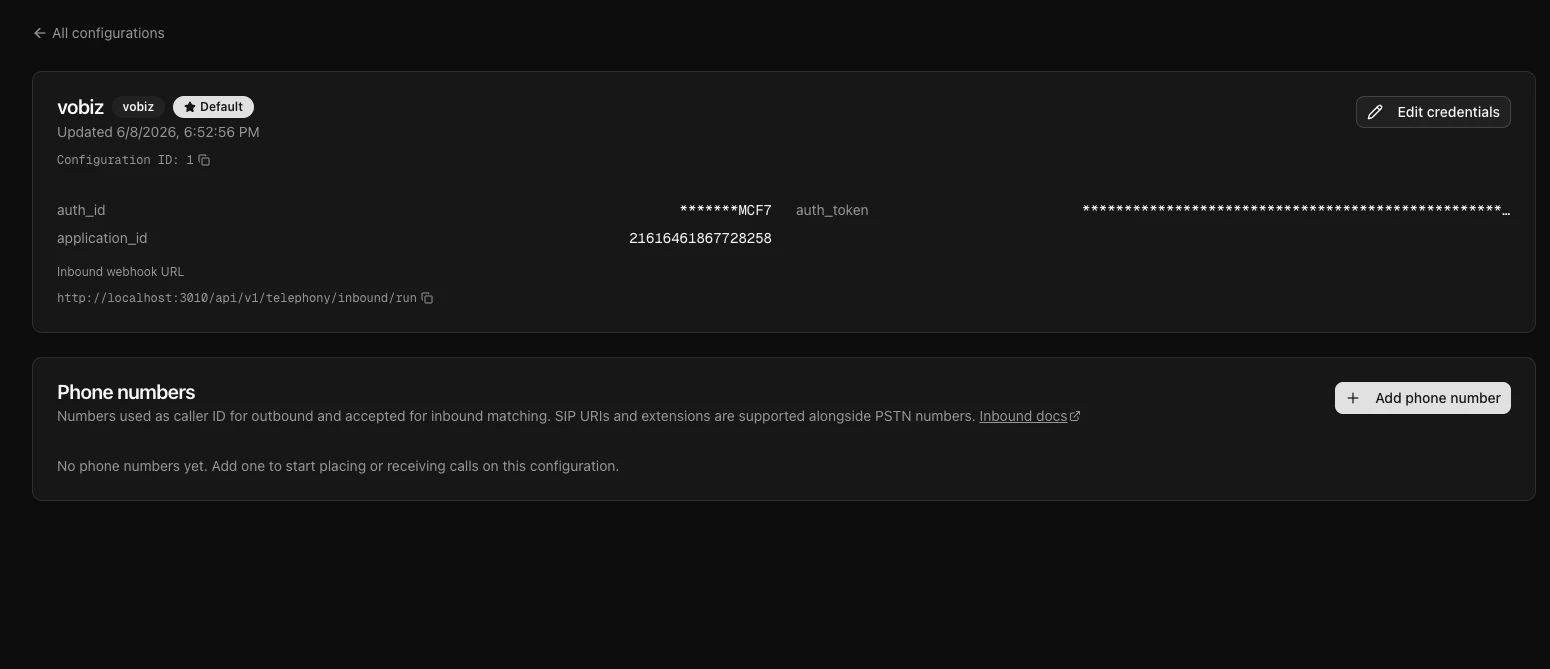

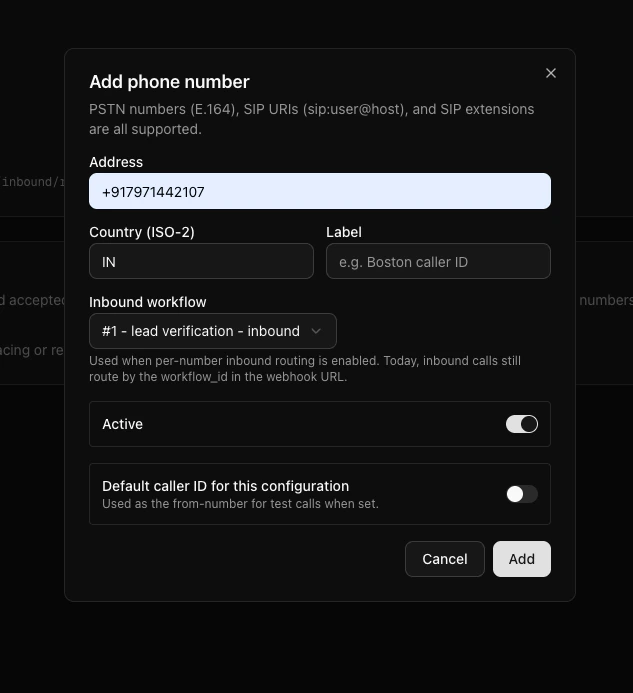

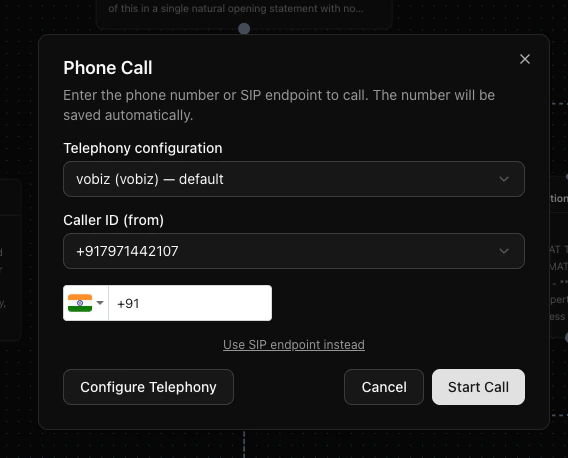

Attach a workflow to a Vobiz number on the account - Dograh updates that Vobiz application’s answer_url so incoming calls route to the agent. Add a phone number in Dograh Enter your Vobiz phone number in Dograh Assign the Vobiz number to an agent

​
How it works

Dograh REST dial → Vobiz places call → ring-callback → answered
  → Vobiz fetches /vobiz-xml
  → <Stream bidirectional="true" contentType="audio/x-mulaw;rate=8000">
  → WebSocket opens → caller audio (media) ⇄ bot audio (playAudio)
  → hangup-callback on end

​
Troubleshooting

Stale browser session after a re-clone or secret change. Clear site data for localhost:3010, or use an Incognito window.
Check your STT/LLM/TTS provider keys in Settings (if using the built-in hosted models, verify the account/key is active). Confirm backend_api_endpoint in the health output is a reachable public URL.
OpenAI returns 24 kHz audio; ensure it’s resampled to the 8 kHz telephony rate. Configure the TTS at its native 24 kHz so the transport downsamples.
Turn-taking depends on the bot-stopped-speaking signal. Avoid a continuous output mixer on telephony.
Remap host ports via a docker-compose.override.yaml (e.g. postgres 5433, redis 6380, api 8001).

​
